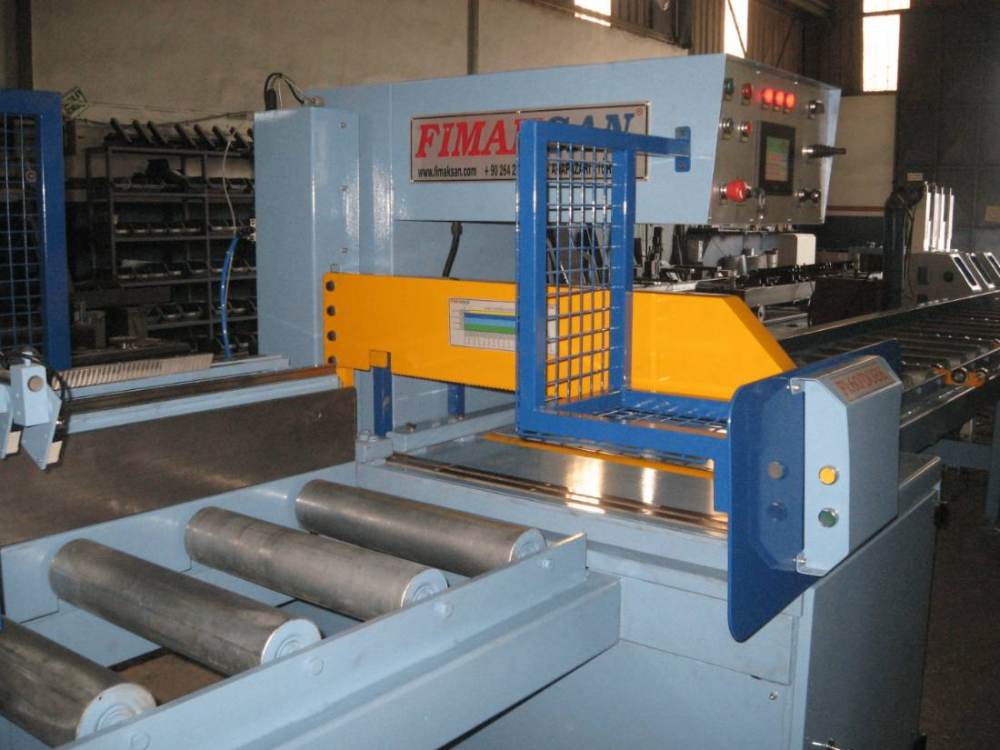

FI. 60 / DOBK
CROSS-CUT - DIGITAL - AUTOMATIC
Technical Specifications
| Positioning | 7'' Touch screen with color |
|---|---|
| Cutting Height | Max: 160 mm (6.3 in) |
| Cutting Width | 650-850 mm (VARIABLE) |
| Cutting Lenght | Max: 420 cm (165.4 in). (more optional) |
| Saw Motor | 11 kW |
| Saw Spindle Rev Speed: 50hz | 3100 rpm |
| Wood Feed Roller Motor | 1,5 kW X 2 |
| Feed Speed / Stopper | 1 mt /sec.– servo motor drive |
| Feed Speed | 80 mt / min. |
| Saw Diameter Ø | 500 mm (19,5″) |
| Saw Spindle Diameter Ø | 35 mm (1.4 in) |

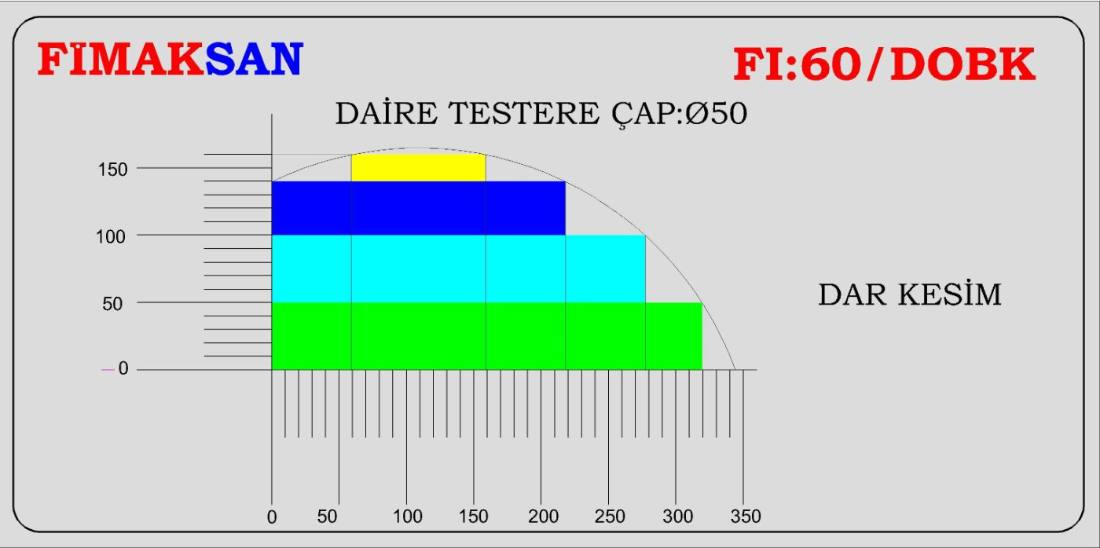

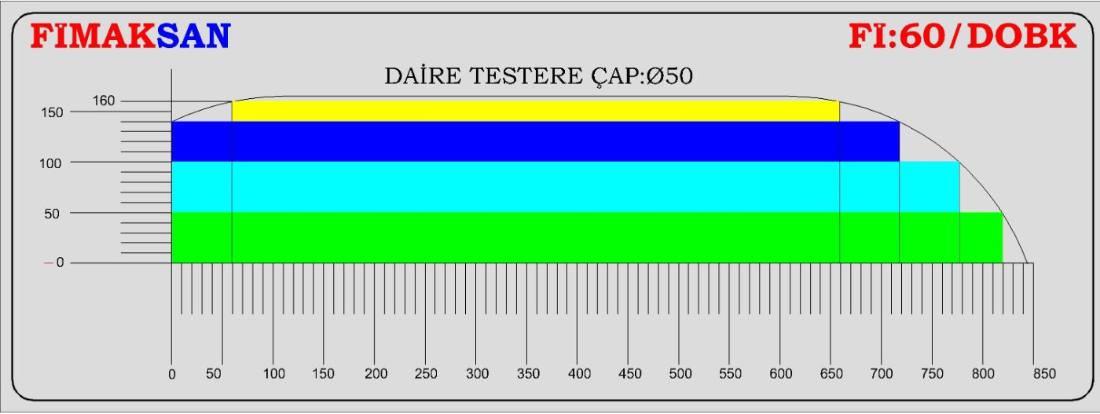

| Cutting Size Capacity | As shown on the diagram. |
| Positioning Repetation Accuracy | +/- 0.2 mm (0.0 in) |
| Rubber Belt conveyor for waste | 120 cm (47.2 in) length x 30 cm (11.8 in) width |
| Lubrication System for Linear Bearings | Manual lubrication pump with lubrication unit |
