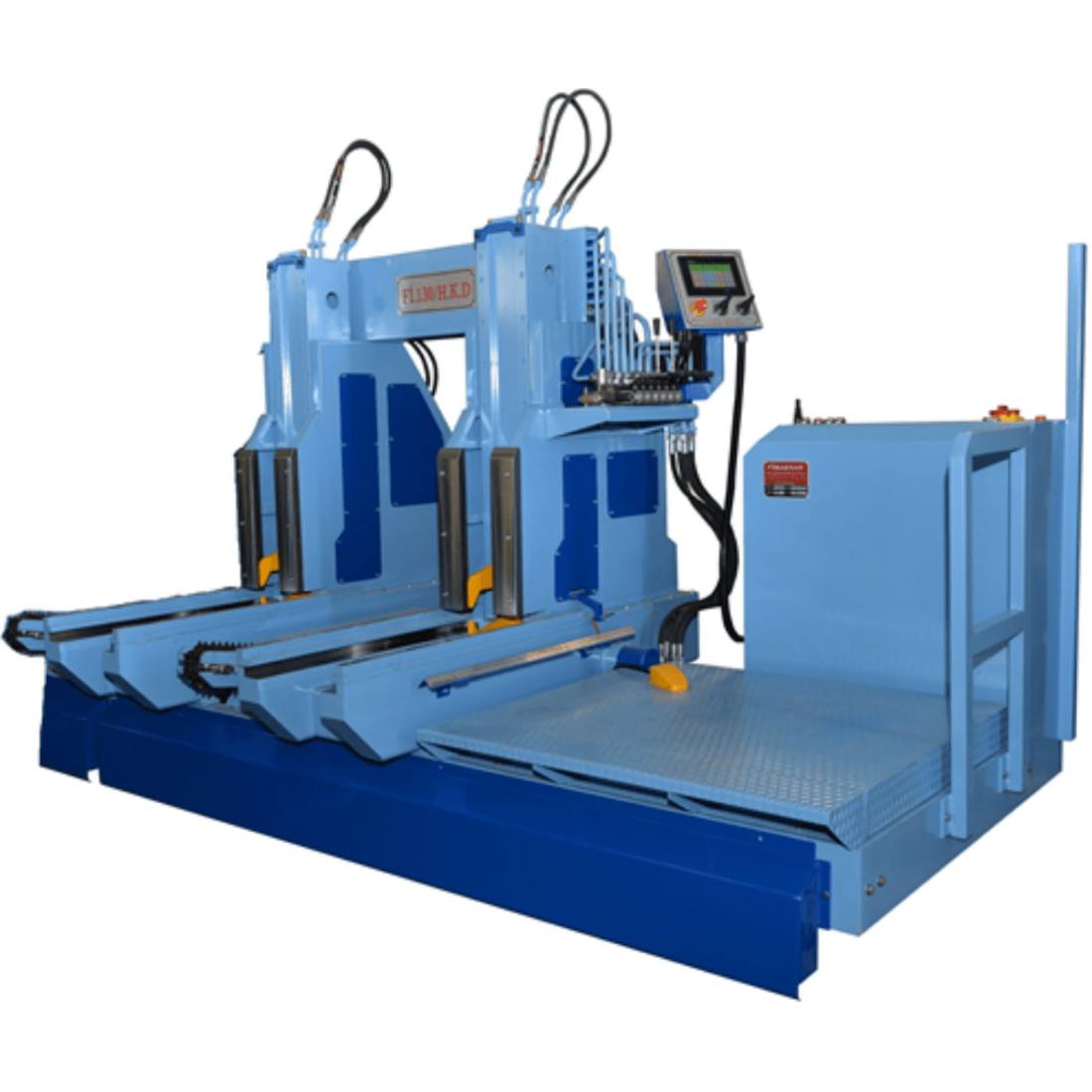

FI. 100 / UHKD 2 CARRIAGE – 2 HEADBLOCK
Technical Specifications
| Max Log Diameter | Max: 850mm (33.5 in) |
|---|---|
| Rail Length | 12 Meters |
| Rail Width | 115cm (45.3 in) |
| Hook Opening Distance | Max: 760 mm (29.9 in) |
| Headblock Opening | Max: 850mm (33.5 in) |
| Hook In & Out Distance | In / Min: 35 mm (1.4 in), Out / Max: 140 mm (5.5 in) |
| Distance Between Headblock | 120 cm (optional) |
| Carriage Drive System | hydraulic, rope driven |
| Headblock Drive System | 5.5 kW geared motor |
| Positioning Control | PLC control (touch panel) 5 |
| Headblocks Speed | 290 mm (11.4 in)/sec. |
| Drive System (Logging) | 1,5 Kw geared motor |
| Turner Lift System | Hydraulic cylinder Drive System |
| (Hook) | Hydraulic cylinder |
| Carriage Feed Speed | 0-90 m/min. |
| Lubrication System | automatic, timed |
| Hydraulic Unit | 7.5 kW Motor |
| Dimensions | 350 X 190 X 251 cm (137.8 x 74.8 x 98.8 in) (Length Width Height) |
| Hydraulic Cooling System | Automatic thermostat radiator fan system |
| Weight | 2900 kg (6,393 lb) |
