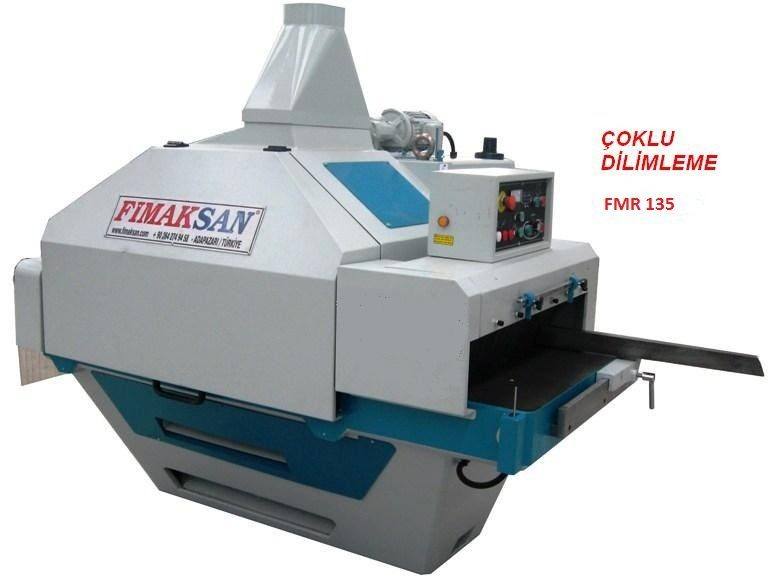

FMR / 135
MULTI SLICING
– SINGLE NATIONAL
Technical Specifications
| Cutting Thickness | Max: 135mm (5.3 in) |
|---|---|
| Cutting Width | Max: 350mm (13.8 in) |
| Working Length | Min: 650mm (25.6 in) |
| Max. Saw Blade Diameter | Min: 250 mm (9.8 in) Max: 400 mm (15.7 in) |
| Saw Hole Diameter | 70mm (2.8 in) |
| Main Spindle Diameter | 55mm (2.2 in) |
| Saw Blade Turn Speed | 60 hp / 3000rpm |
| Saw Main Motor Power | 60hp |
| Caterpillar Movement Speed | 7.5 ~ 30 m / min. |
| Saw Movement (Up-Down) | 1 hp |
| Table Height | 745mm (29.3 in) |
| Table Area | 1840 x 770mm |
| Machine Dimensions | 2340 X 1600 X 1510 mm (92.1 x 63.0 x 59.4 in) (Length Width Height) |
| Weight | 2400 kg (5,291 lb) |
